    •   ​Moxee Hotspot Guide

    ​ ​ ​

    # Setting Up Wi-Fi Connection

    1. **Power On the Device**

    Press and hold the Power Button for 3 seconds until the welcome logo appears on the display. After a few moments, the Wi-Fi signal icon will be visible.

    2. **Connect to the Network**

    Look for the network (SSID) labeled “Moxee HotspotXX_2.4G” or “Moxee HotspotXX_5G,” where XX represents the last two digits of the device IMEI.

    3. **Enter the Password**

    Click “Connect” and enter the default password found on your device. You can find your Wi-Fi SSID and password information on the device’s “Wi-Fi Info” screen or on the SSID label located underneath the battery cover.

    **Note:** This device will periodically search for software updates, which may result in a small amount of data usage.

    # Setting Up WPS

    If your terminal supports WPS (Wi-Fi Protected Setup), you can connect without manually entering the password. Follow these steps to set up WPS:

    1. **Enable WPS in the WebUI**

    Navigate to Settings > Wireless > WLAN Settings > WPS to enable WPS.

    2. **Activate WPS on the Device**

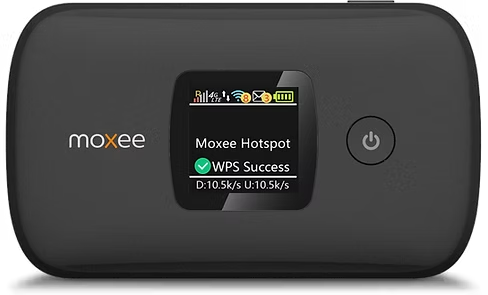

    Press the Menu Button on the device until the “WPS Active” page appears on the display.

    3. **Activate the WPS Function**

    Press the Power Button to activate the WPS function.

    4. **Connect Your Terminal**

    Enable the WPS function on your terminal to connect to the hotspot.

    Moxee Hotspot Troubleshooting

    # Step 1: Restart Your Hotspot

    • Turn the hotspot off.
    • Wait 30 seconds.
    • Turn it back on.
    • Reconnect your phone or computer to the Wi-Fi.

    # Step 2: Check the Signal

    • Look at the signal bars on the hotspot’s screen.
    • If the signal is weak, move closer to a window or step outside for better coverage.

    # Step 3: Log in to the Hotspot Settings Portal

    • Press the power/menu button on the hotspot until you see 'Device Info.'
    • Look for 'IP Address' — this is the number you’ll type into your browser.
    • **Username:** admin
    • **Password:** Found on the sticker underneath the battery
    1. Ensure your device is connected to the hotspot’s Wi-Fi.
    2. Open a web browser and type: `http://192.168.0.1` (or try `http://192.168.1.1`).
    3. If neither of those work, check the device’s screen menu:
    4. Enter the login details:

    # Inside the portal, you can:

    • Check your data usage to confirm your service is active.
    • See signal strength directly from the network.
    • View connected devices (and disconnect if needed).
    • Change your Wi-Fi name and password.
    • Refresh the connection if the hotspot is not getting service — this often fixes issues.

    # Step 4: Test the Connection

    • Try opening a website. If it works, you’re all set!
    • If not, contact AFNET support with your Hotspot IMEI and SIM ICCID (found under the battery or on the SIM card).

    ---

    Quick Start Guide - Get the Moxee Mobile Hotspot Quick Start Guide to get up and running fast.

    User Manual - Get the user manual to learn more about Moxee Mobile Hotspot.
